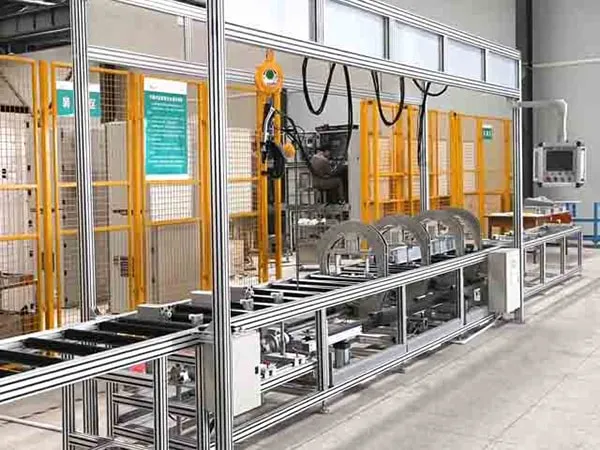

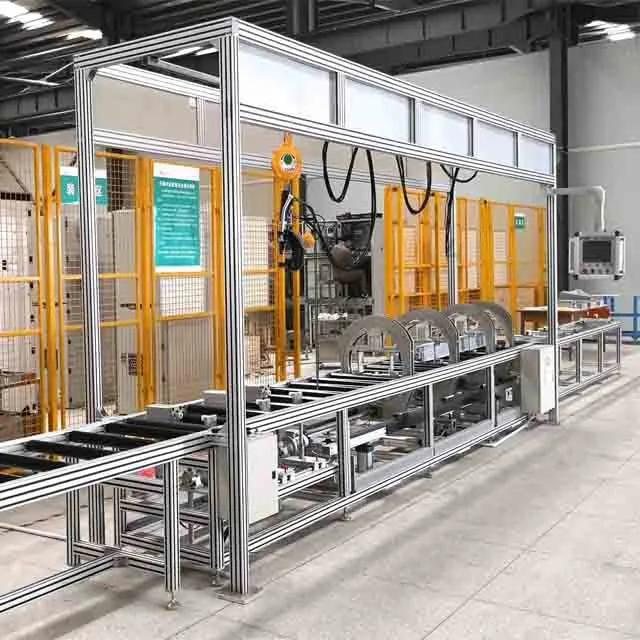

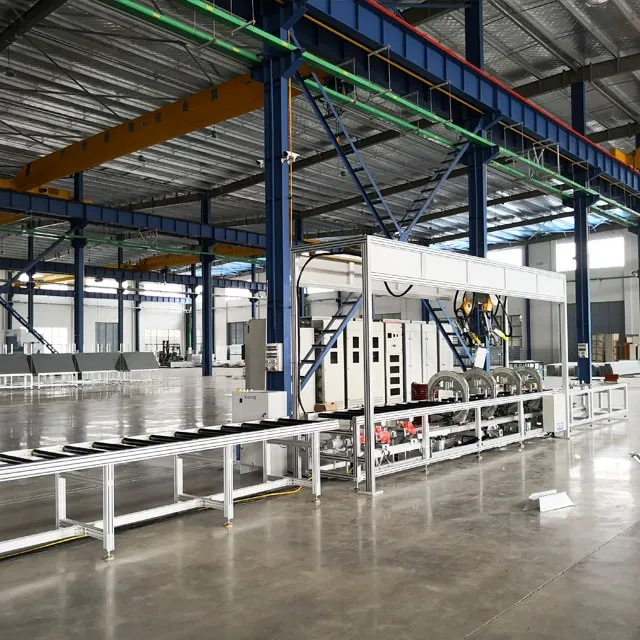

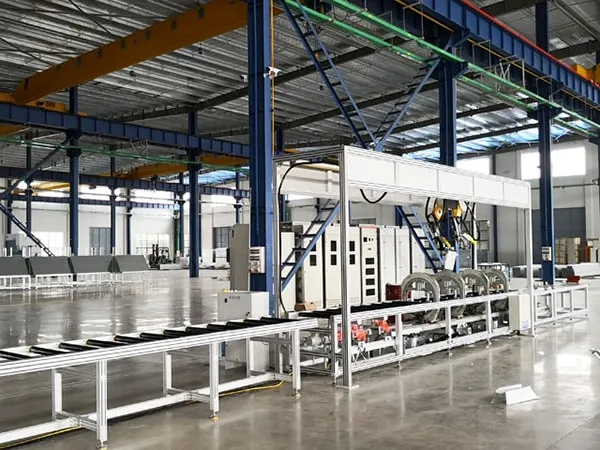

Semi-Automatic Busbar Assembly Line
Used for staged busbar assembly with manual riveting and 180° turning
Watch Video

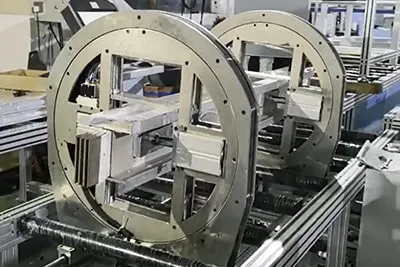

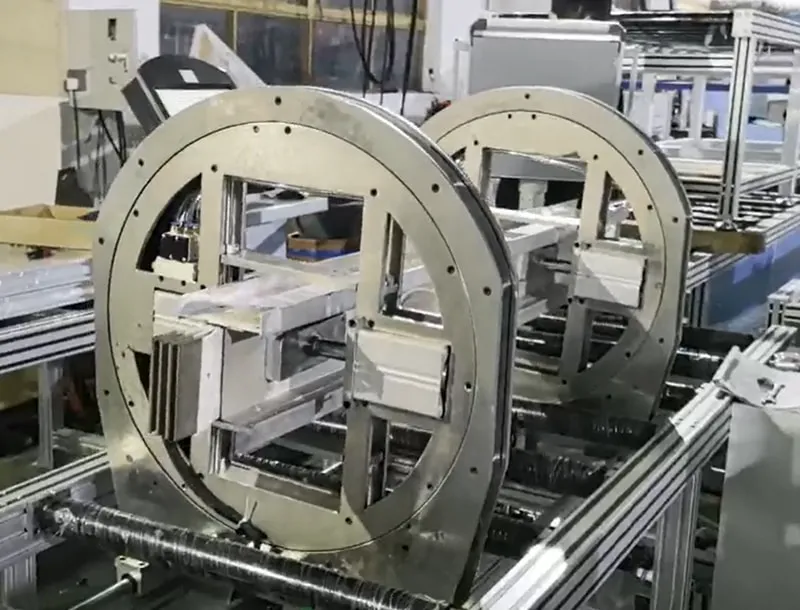

Semi-automatic busbar assembly lines are designed for busbar assembly work that combines manual riveting with assisted handling between stations. Standard semi-automatic assembly line includes three main stations, which are pre-assembly, automatic turning, and accessory assembly. At the pre-assembly station, operators first put the busbar parts together and secure them with tooling. The busbar is then moved to the turning station, where it is clamped in place for riveting. One side is riveted manually first, after which the busbar is turned 180° so the second side can be riveted in the same way. Once riveting is completed, the busbar moves to the accessory assembly station for the installation of busbar accessories.
Features
- Pre-assembly, turning, and accessory assembly in one line
- Automatic turning between the two riveting steps
- Suitable for busbar assembly processes with manual riveting
- Clamping support during the riveting stage
- Accessory installation after riveting
Main Functions
- Busbar Fixing
- Turning
- Positioning
Assembly Workflow
Pre-assembly
Transfer to turning station
First-side riveting
180° Turning
Second-side riveting
Accessory assembly
Specifications
| Model | |
| Max. Busduct Height | 330mm (single layer) |
| Max. Busduct Length | 6000mm |
| Working Efficiency | Approx. 3000mm per 4min |
| Riveting Machine | Not included |
| Number of Rotator | 4 sets (standard) |
| Length of Reversal Section | 4500mm |
| Number of Manual Lifting Fixture | 3 pieces |
| Length of Manual Operation Station | 1500mm |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power Supply | 380–415VAC, 50–60Hz, 5kW |
| Dimensions (L×W×H) | 18000×800×1900mm |
