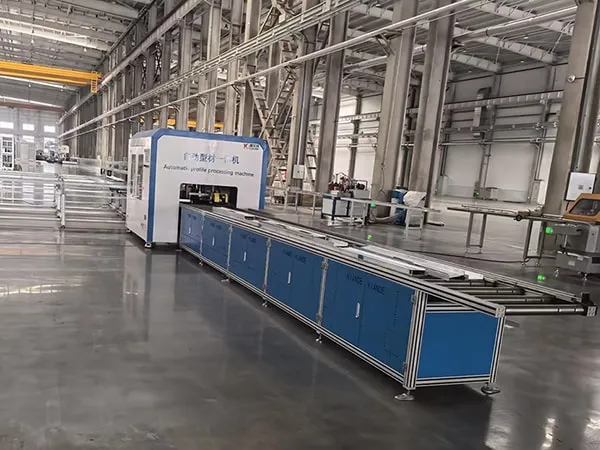

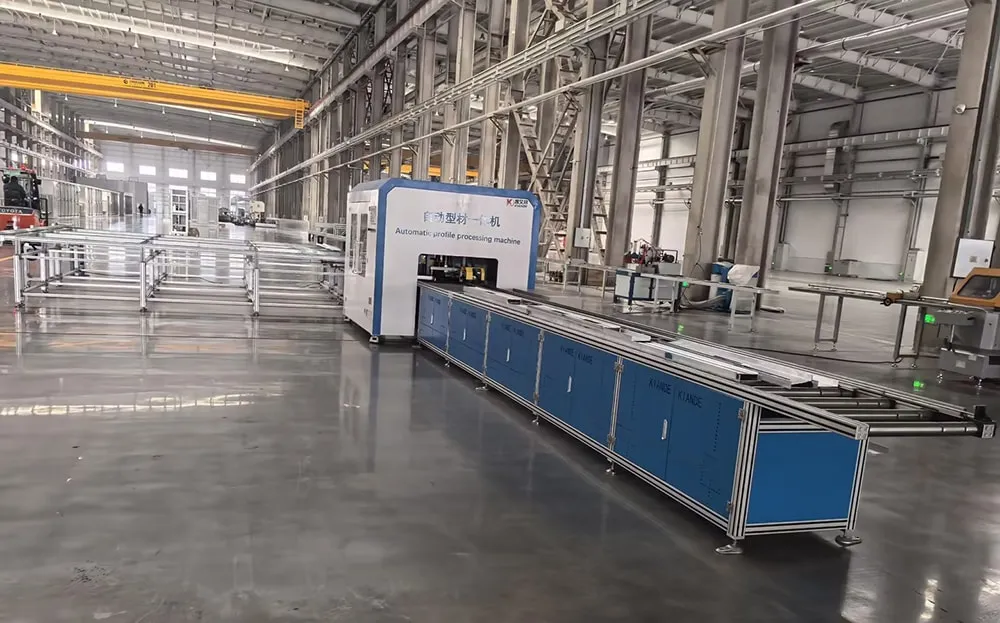

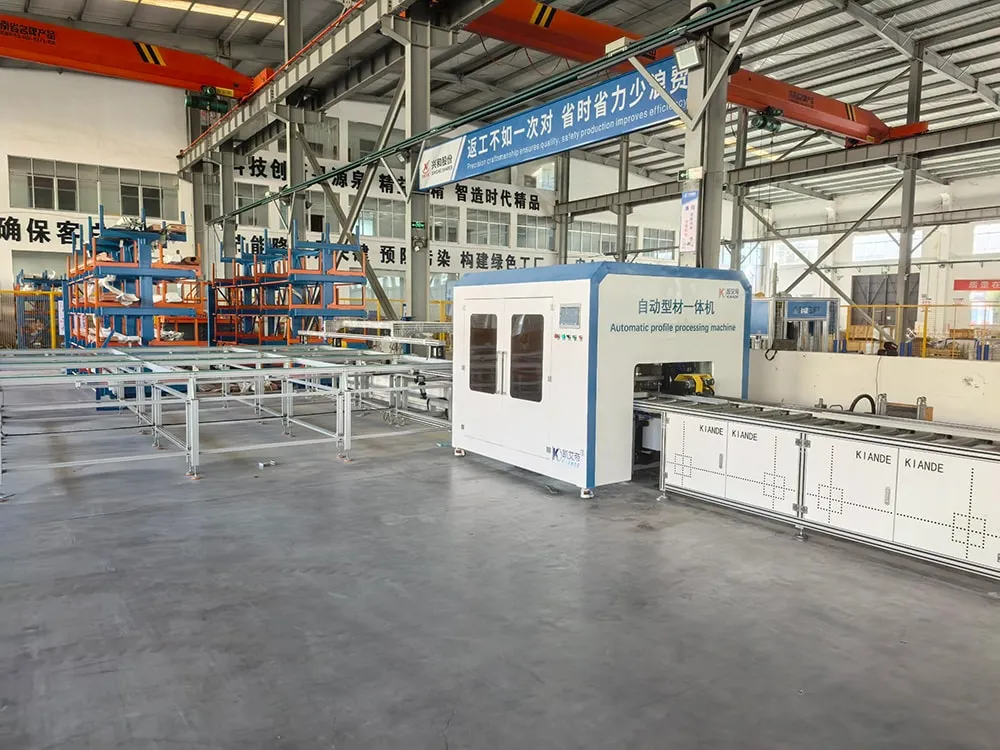

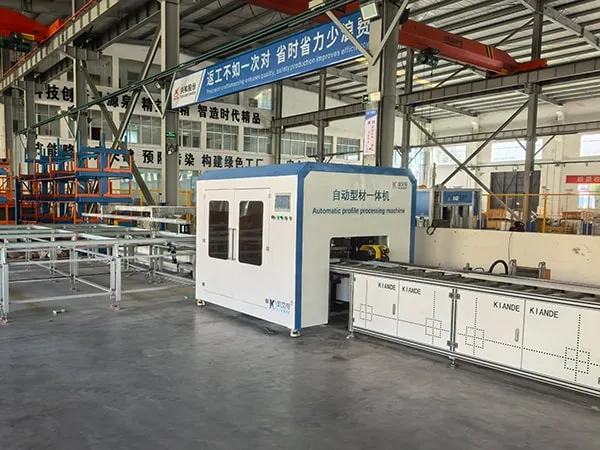

Automatic Profile Processing Machine
Used for end cutting, punching, and drilling of busduct housing profiles
Traditional methods cause misaligned holes and material distortion. KIANDE automatic profile processing machines remove these bottlenecks through high-precision CNC positioning, ensuring strict assembly tolerances without the need for manual marking or secondary cutting.

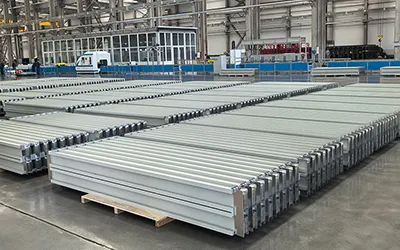

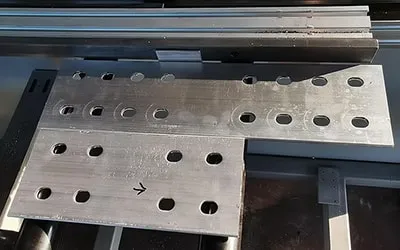

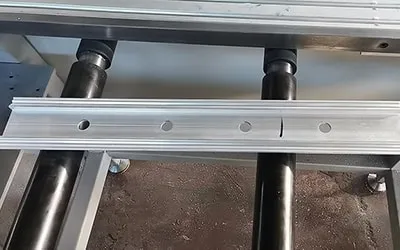

Samples
- Switchgear & Controlgear: Cutting, punching, notching of LV/MV mounting profiles.
- Cable Tray: Cutting & punching of C-channel, U-channel, angle profiles.
- Industrial Enclosures: Profiles for cabinets, boxes, machine bases.
- Solar Mounting: Cutting & end-forming of aluminum/steel profiles for PV racks.
Features
High Precision
±0.3mm tolerance, ensuring perfect alignment for busway enclosures
Mult-Function Integration
Cutting, punching, drilling, notching – all integrated into a single machine
Automated Workflow
Seamless CAD data import and auto feeding, minimizing manual handling
Easy Operation & Low Maintenance
User-friendly interface, simple operation, low maintenance cost
Specifications
| Model | |
|
| Functions | Vertical punching | |
| Horizontal punching | ||
| Drilling | ||
| Nominal Force | 300kN (vertical punching) | |
| 30kN (horizontal punching) | ||
| Stroke of X Axis | 3000mm | |
| Speed of X Axis | 0–150mm/s | |
| Marking | Barcode, QR code (optional) | |
| Conductor Size (Aluminum) | Length | 1200–3000mm (customizable) |
| Width | 45–220mm | |
| Thickness | 2.5–5mm | |
| Max. width of cover plate | 49mm (customizable) | |
| Max. height of side plate | 39mm (customizable) | |
| Positioning Accuracy | ±0.3mm | |
| Repetitive Positioning Accuracy | ±0.5mm | |
| Saw Blade Power | 3kW (customizable) | |
| Saw Blade Diameter | 405mm | |
| Length of Finished Busbar Housing | 275–3000mm | |
| Max. Hydraulic Pressure | 31.5MPa | |
| Power Supply | 380–415VAC, 50–60Hz, 10kW | |

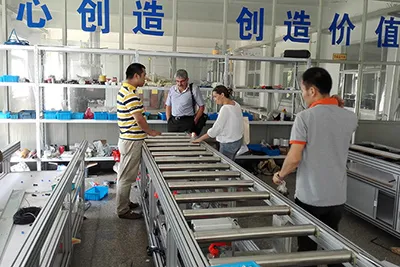

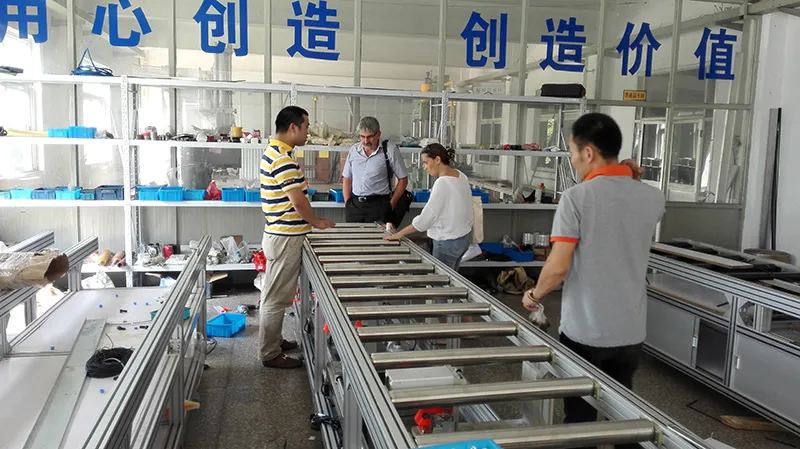

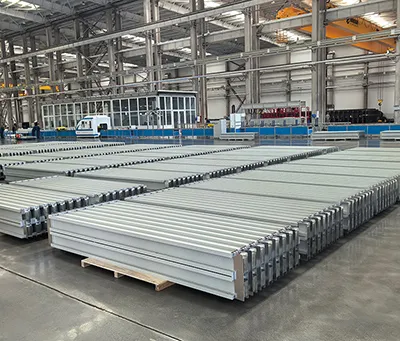

Customer Factories
