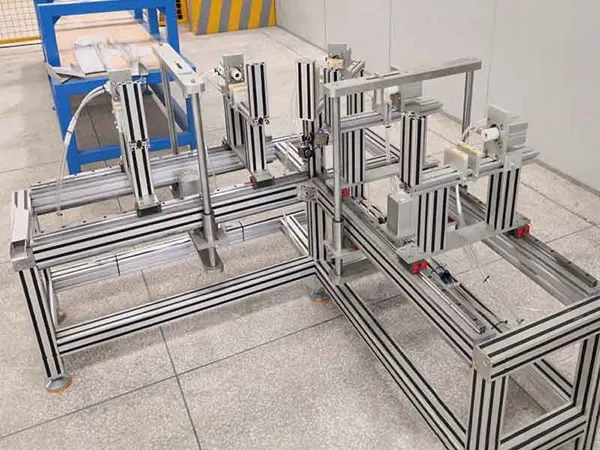

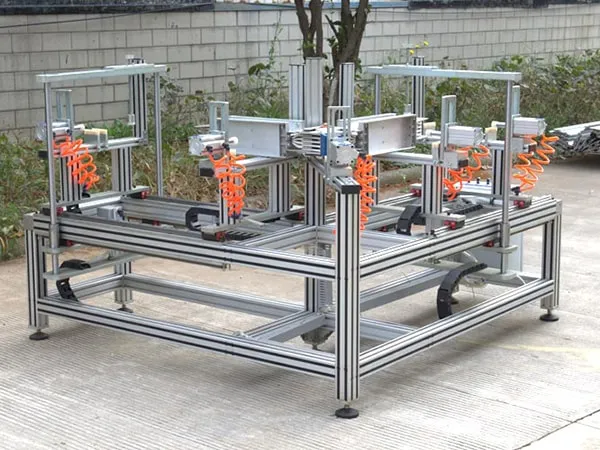

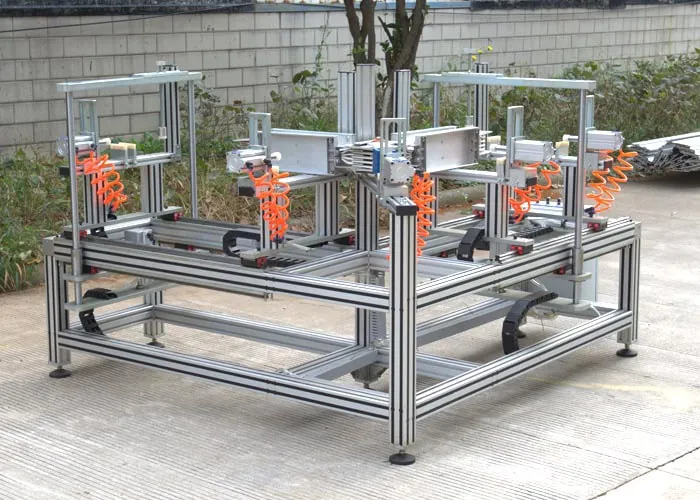

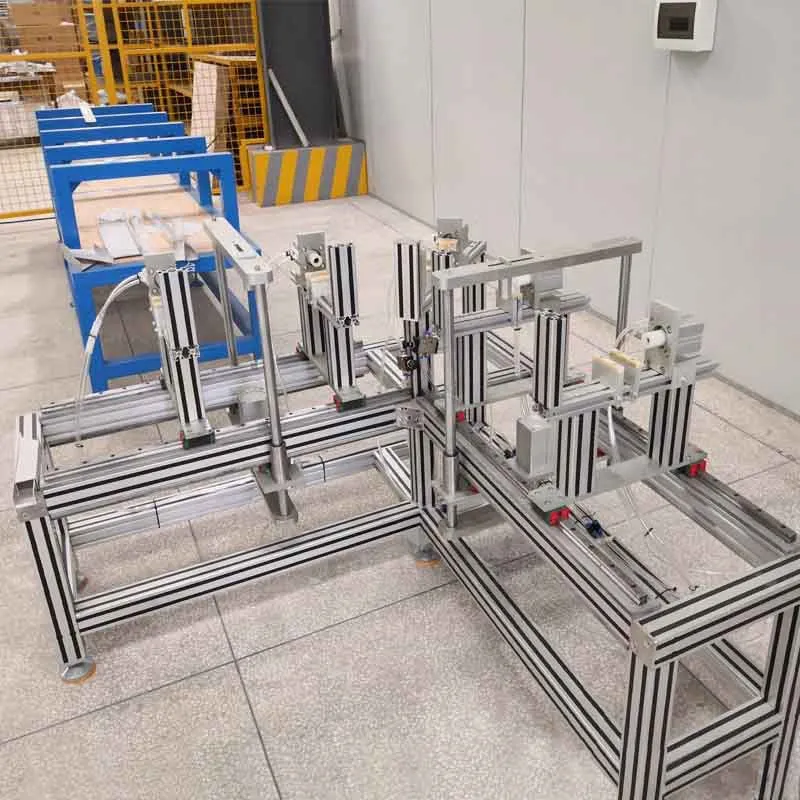

Busbar Elbow Assembly Fixture

For positioning and pneumatic clamping of vertical and horizontal busbar elbows

Busbar elbow assembly fixtures are used to position and hold vertical or horizontal busbar elbows during assembly. They are used to hold the busbar elbow in the required position before riveting, so the connected sections stay in place during assembly.

Since busbar elbows are not all the same size, the fixture is customized to suit the dimensions required for production. During assembly, pneumatic clamping keeps the busbar sections pressed together before riveting.

Features

Suitable for vertical and horizontal busbar elbows
Positioning and holding support during assembly
Customized according to different busbar sizes
Pneumatic clamping during the assembly stage
Helps keep the busbar sections closely fitted before riveting

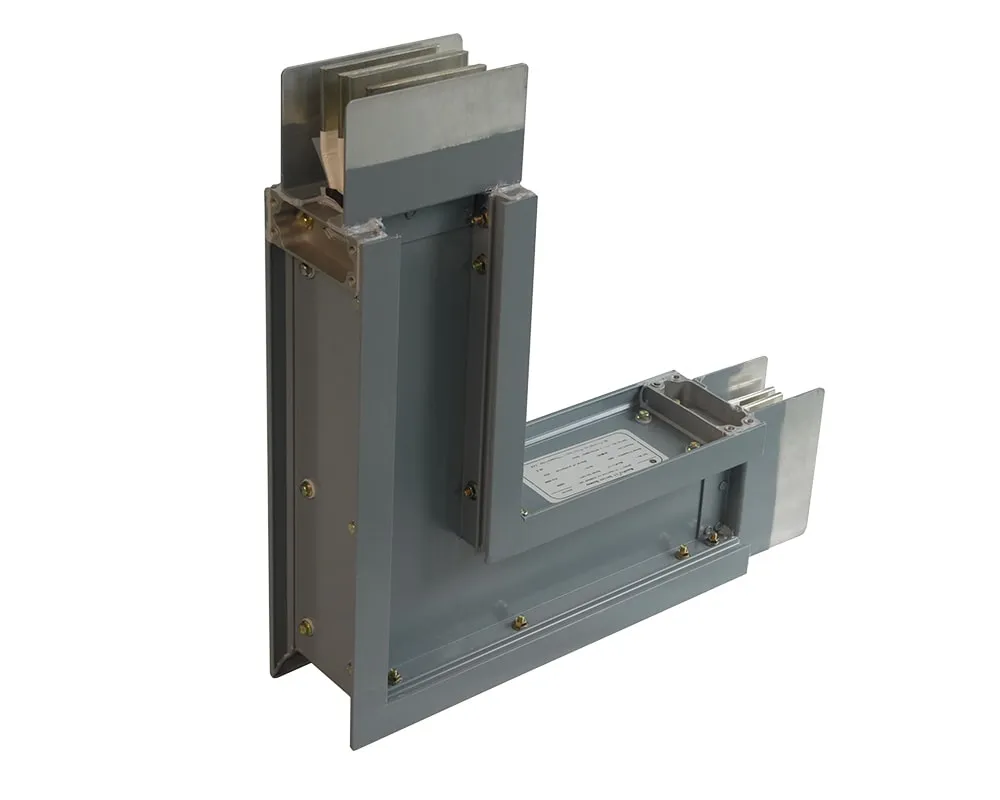

Busbar Elbow

Specifications

Model	KD-WTGZ-SP/CZ-1500
Max. Size of X/Y Axis	1500mm
Number of Clamping Fixtures	3 pieces
Elbow Type	Horizontal elbow, vertical elbow
Power Supply	380–415VAC, 50–60Hz, 1.5kW
Air Supply	0.6MPa
Dimensions (L×W×H)	1800×1800×900mm
