Bus Bar Machine Use and Features

The machine is mainly processing all kinds of copper, aluminum bus, the user as long as the corresponding processing unit, can be carried out the bus, shear, bending. Higher production efficiency, is the ideal equipment for the production of high and low voltage electrical equipment

This machine has the following main features

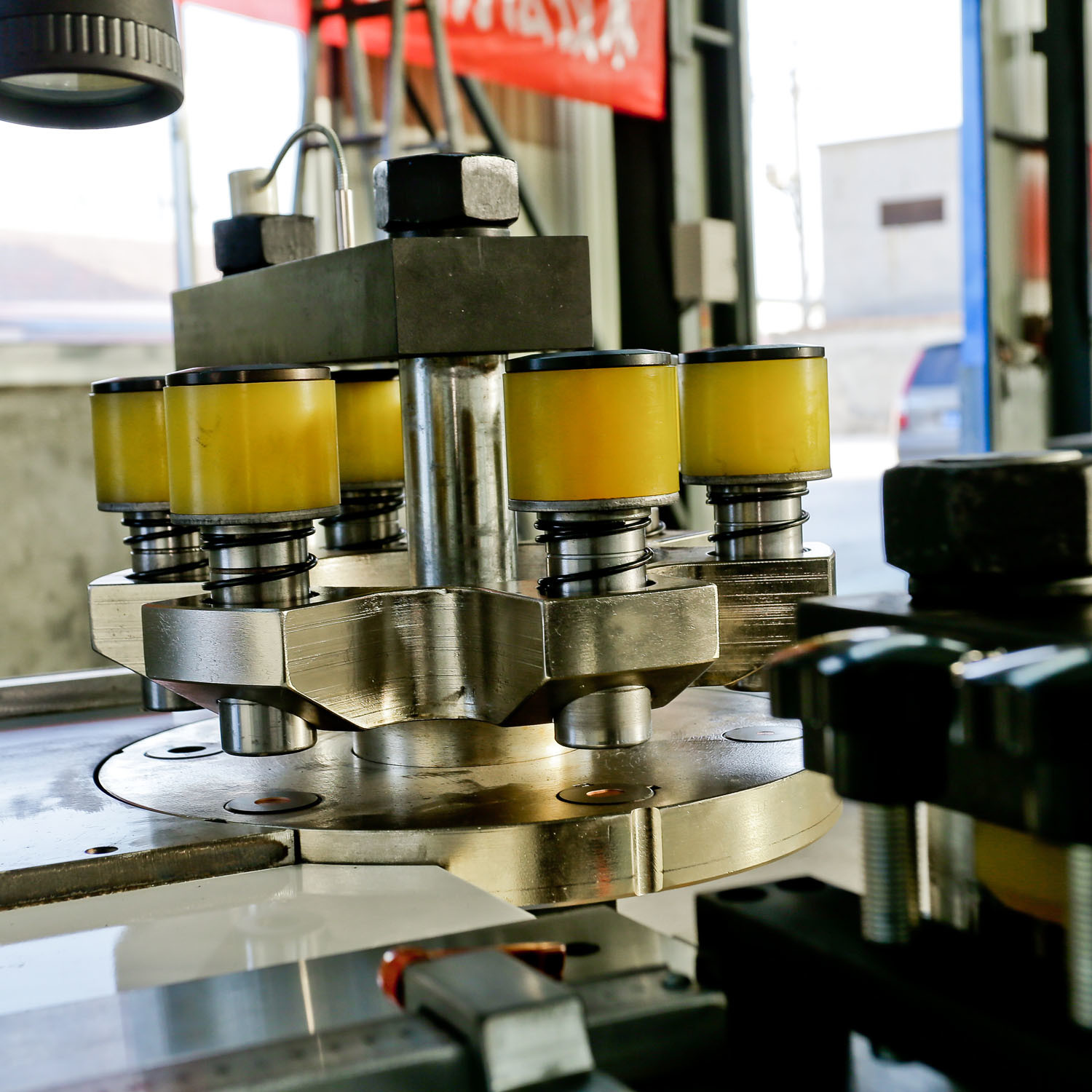

Machine is equipped with punching, shearing, folding three processing units, can be carried out the bus of the punching, shearing, folding processing. Using this machine can obviously improve the production efficiency compared with the traditional bus processing equipment, and also obviously improves the convenience of the use.

The working stroke of each processing unit can be adjusted conveniently (within the limit of travel), therefore, the processing time can be reduced, and the production efficiency can be improved.

The processing function by replacing the die also can achieve a variety of purposes, such as vertical bending, embossing and back pressure equal.

The machine is equipped with two kinds of operation mode, the manual button and the foot pedal switch, the operation is simple, the use is convenient and flexible, and the general skilled worker can use the operation easily.

The structure and working principle of the machine

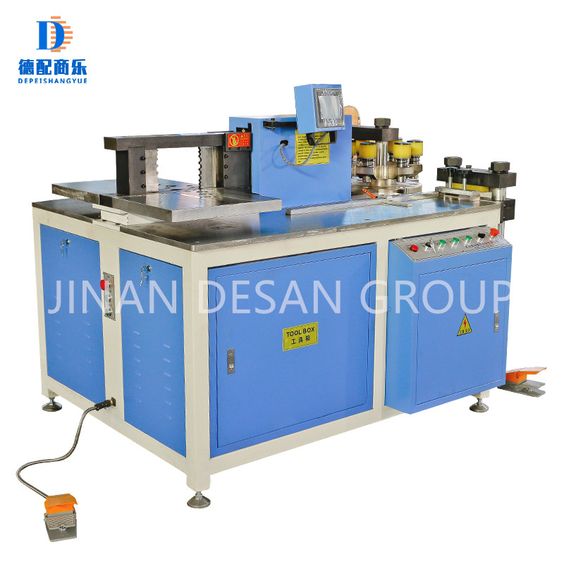

The machine is composed of a machine frame, a punching unit, a shearing unit, a bending unit, a hydraulic station, an electric system and a mould.

The frame is welded by square steel tubes with sufficient strength and rigidity. The punching, shearing, folding and electric appliances are arranged on the machine frame, and the hydraulic power station is arranged inside the frame.

The working principle of the machine is as follows：

Motor (to pump power) – pump (generating high pressure hydraulic power) – Electromagnetic + relief valve (control) Remote pressure regulating valve (regulating the two pressure) – electromagnetic valve (the pressure oil to each oil cylinder) – cylinder (oil cylinder action, to achieve punching, shearing, folding processing).

The motor rotates to transmit power to the oil pump, and the oil pump generates high pressure oil. High pressure hydraulic oil through the one-way valve to the electromagnetic relief valve. When the hydraulic oil tank (through relief valve). Electromagnetic flow valve is closed, the first level force, remote pressure regulating valve reduces the partial pressure of hydraulic oil, then oil is transported to the solenoid valve, electromagnetic valve control the direction of hydraulic oil, oil cylinder to achieve or before and after exercise .
