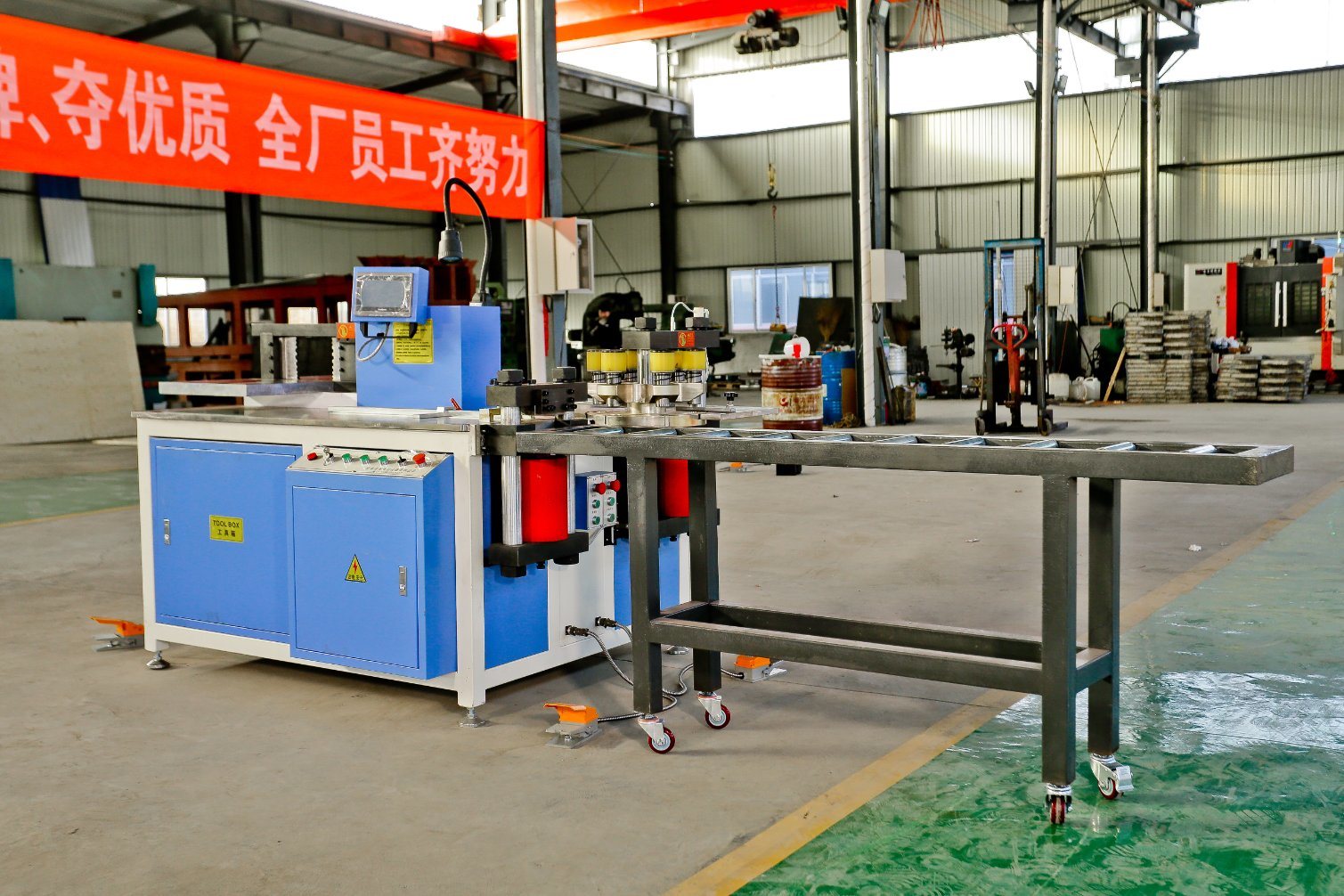

When bending is performed, the following methods shall be followed:

1. The moving parts must be refueled.

2. When bending is performed, the corresponding convex and concave mould shall be selected according to the width, thickness and angle of the material to be processed.

 3. Select the mold opening in accordance with the material specifications to be processed. If the user has no special requirements, the device would randomly provide one concave mould with opening of 70 mm, one convex mould of R10 and one of R5.

4. When the Z-bend is required, a small mold of R3 may be required.

5. Additional functions may be added as an option:

(1) Vertical bending: (commonly known as vertical bending or lateral bending) operator change to use a vertical bending mould, discharge the busbar into the middle opening of the punch, press the "Foot Switch", pay attention to jog running at first, until the desired angle is completed. If a lot of products are to be made, the test piece can be adjusted to the position reached by the first stroke.

(2) Embossing: Change into the embossed mold and this function can be realized.

      (3) Anti-flattening: When the angle is excessively large due to improper operation, the anti-flattening die can be replaced to achieve anti-flatten.
