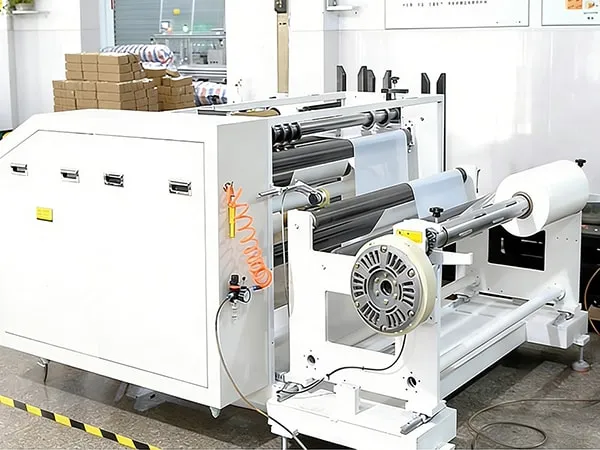

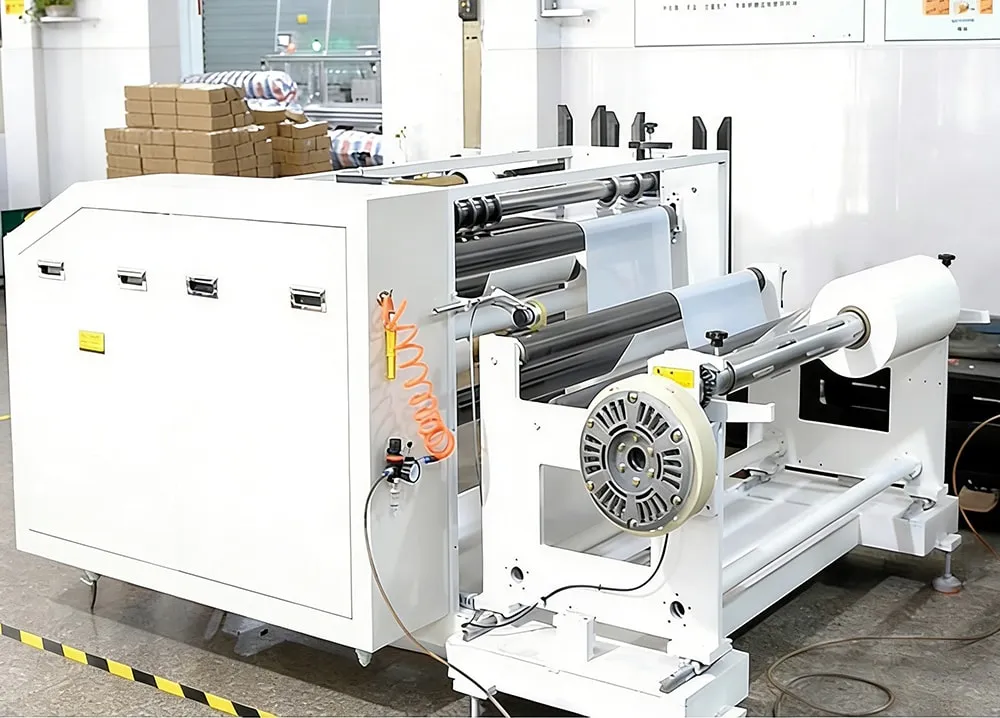

Polyester Film Slitting Rewinding Machine
Used to prepare insulation film in required widths and lengths for busbar processing
Polyester film slitting machines are designed to cut polyester insulation film to the required width for busbar insulation processing. Each slitting machine includes three main sections to carry out unwinding, slitting, and rewinding.
During operation, the polyester film is released from the unwinding section, cut to the required width in the slitting section, and then collected in the rewinding section. The required length can also be set in advance, so the finished film is prepared for the next insulation processing step.
Watch Video
Features
- Width can be adjusted according to production needs
- Unwinding, slitting, and rewinding in one process
- Finished length can be set in advance
- Suitable for polyester insulation film preparation
- Supports cut-to-size film preparation for busbar insulation
Applications
Used for slitting polyester insulation film for busbar insulation processes that require specific widths and lengths.
Specifications
| Model | |
| Max. Unwinding Width | 1200mm |
| Max. Unwinding Diameter | 700mm |
| Slitting Width | 50–1200mm |
| Air Expansion Shaft Diameter | 3 inches |
| Slitting Speed | 0–300m/min |
| Length Control | Meter counter |
| Power Supply | 220–415VAC, 50–60Hz, 3kW |
| Air Supply | 0.6MPa |
| Dimensions (L×W×H) | 1600×1800×1500mm |
Slitted Film Samples
