MV Switchgear Assembly Line

Assembly line for enclosure build-up, component installation, and final testing

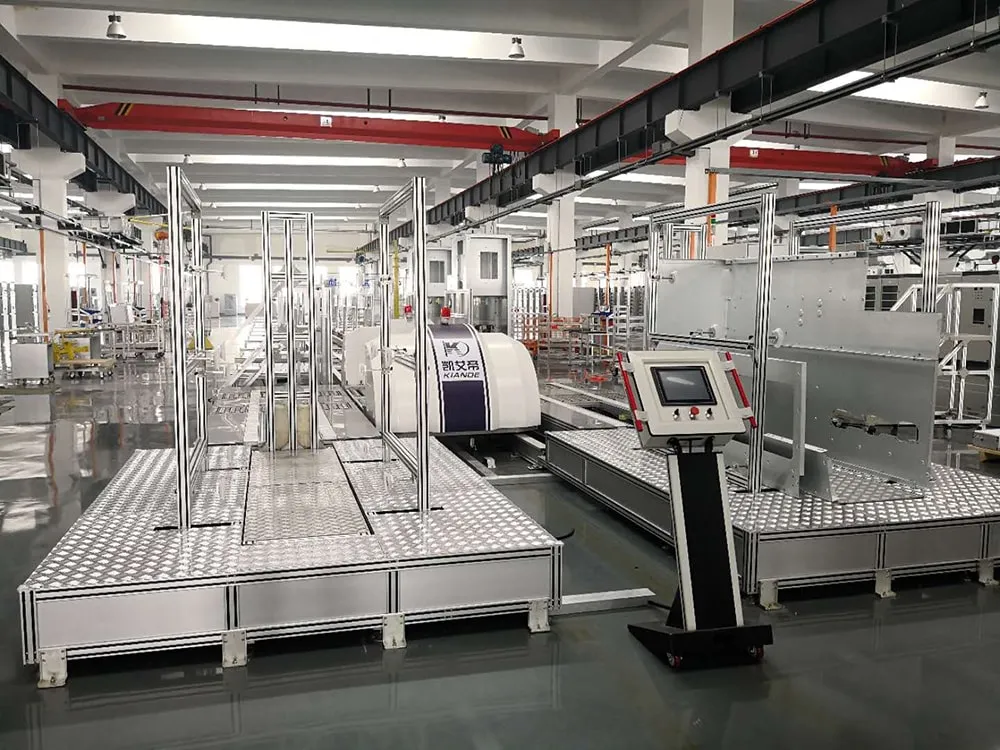

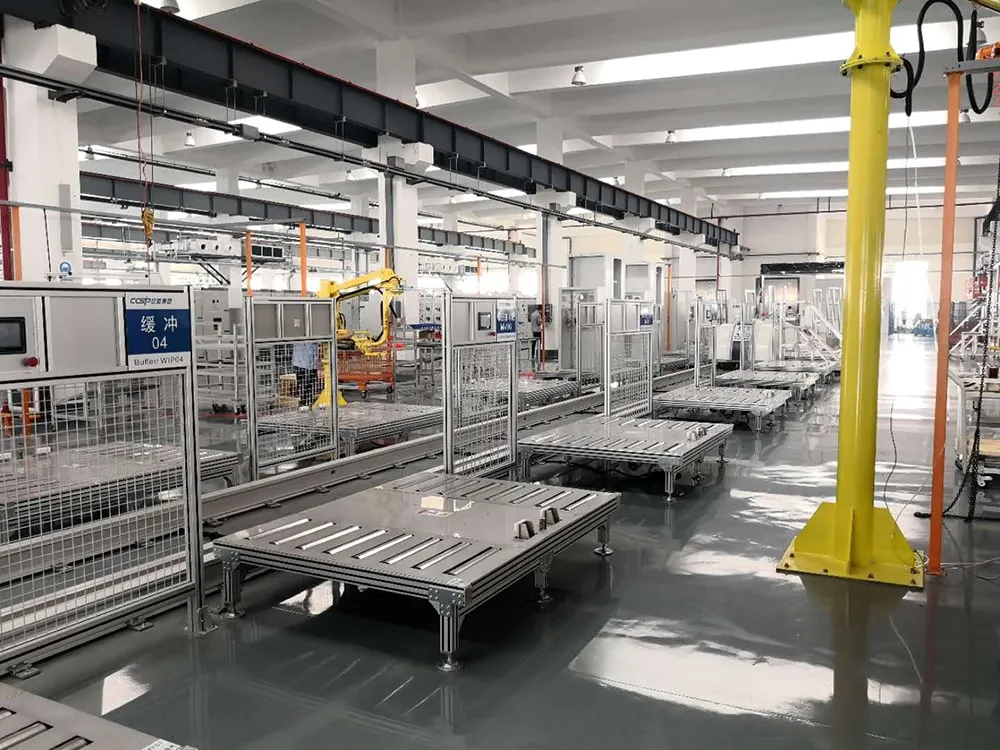

The medium voltage switchgear assembly line carries out continuous production from enclosure installation to final product completion. Through various tooling, RGV transfer vehicles, robotic units, and related workstation fixtures, electrical components are installed into the switchgear enclosure, followed by inspection, commissioning, and final dispatch. Each process step is arranged with a workstation or buffer station. According to the process requirements, corresponding workstation tooling and nearby material storage areas are configured to support smooth switchgear production.

Specifications

Model	KD-MVZPX-20-50
Number of Docking Stations	20–50 sets
Transfer System	Motor vehicle head type RGV (rail guided vehicle)
Frame Assembly	Flip-type automatic positioning
Number of Frame Assembly Stations	2 sets
Control Mode	PLC with Network Connectivity
CT Installation	Manipulator
Door Installation	Manual hoist or industrial robot installation
Instrument Cabinet Installation	Manual hoist or industrial robot installation
Fence Size of Testing Area (L×W×H)	6000×6000×2800mm
Production Efficiency	20 units per 8-hour shift
Power Supply	380–415VAC, 50–60Hz, 20kW
Line Footprint (L×W)	50000×8000mm
